kabelsalat
Why Another Live Coding System?
- OG goal: live codable audio DSP for Strudel
- I want to learn: learning through making
- Why not use web tool X Y Z?
- Dynamically spawning graphs
- Single sample feedback
- I cannot learn from big codebases
- Fun
- Minimalism (these slides contain kabelsalat)
History
- Started playing with Bytebeat in late 2023
-
Made wacky
Patcher UI
-
Found
noisecraft, adapted it for Live Coding

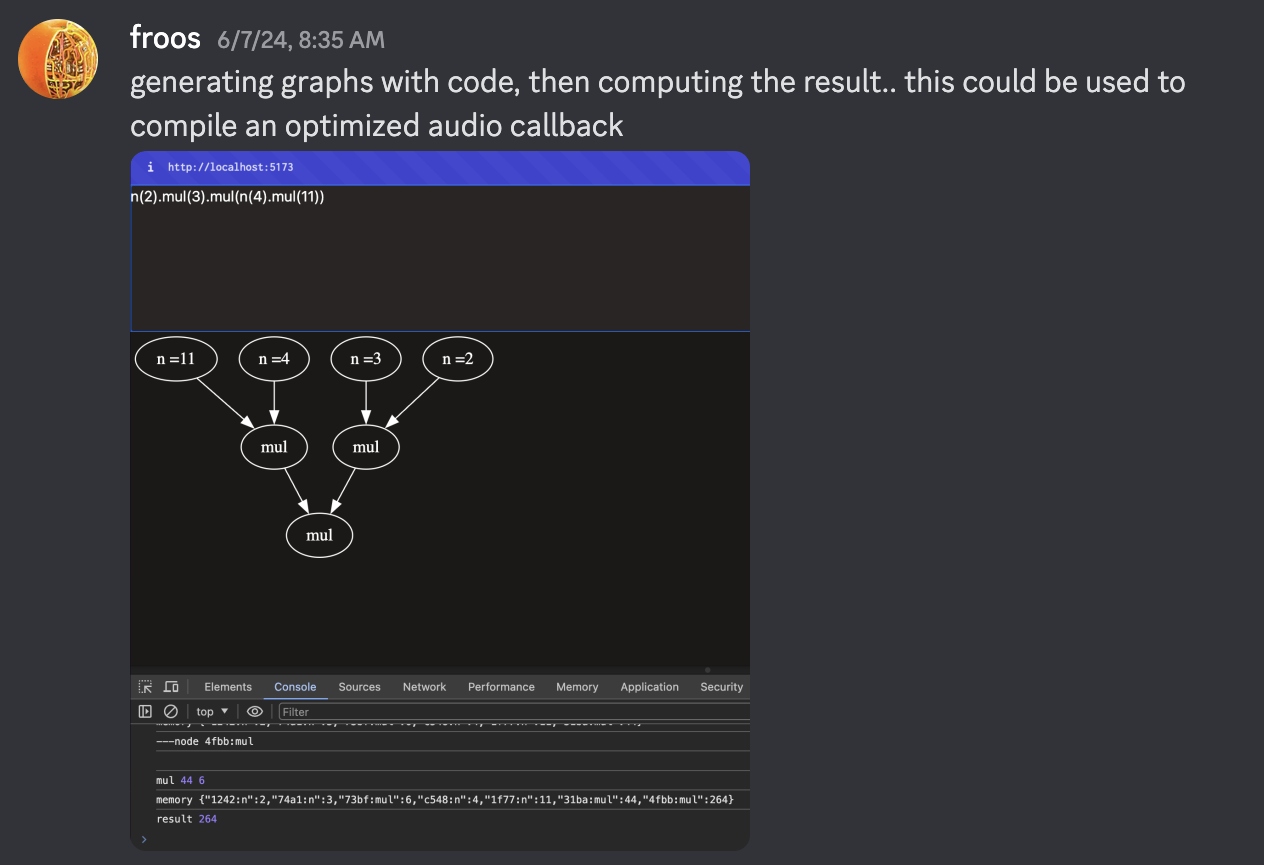

- Kabelsalat project started on june 7, 2024
- also inspired by:
- SuperCollider
- genish.js
- Hydra
- Strudel
- "It's like Hydra and Strudel having a baby"
-
Many details on
garten.salat.dev
- In active development
noisecraft
-
github.com/maximecb/noisecraft
- Project by Maxime Chevalier-Boisvert
- Modular synth patcher for the browser
- Minimal (readable) codebase
- AudioWorklet only
- Interesting compilation technique
- Kabelsalat started as a noisecraft fork
- I gradually adapted it for live coding
- Ended up rewriting most parts
- New compiler
- Multichannel expansion
- Feedback anywhere
- More DSP
1.graph based

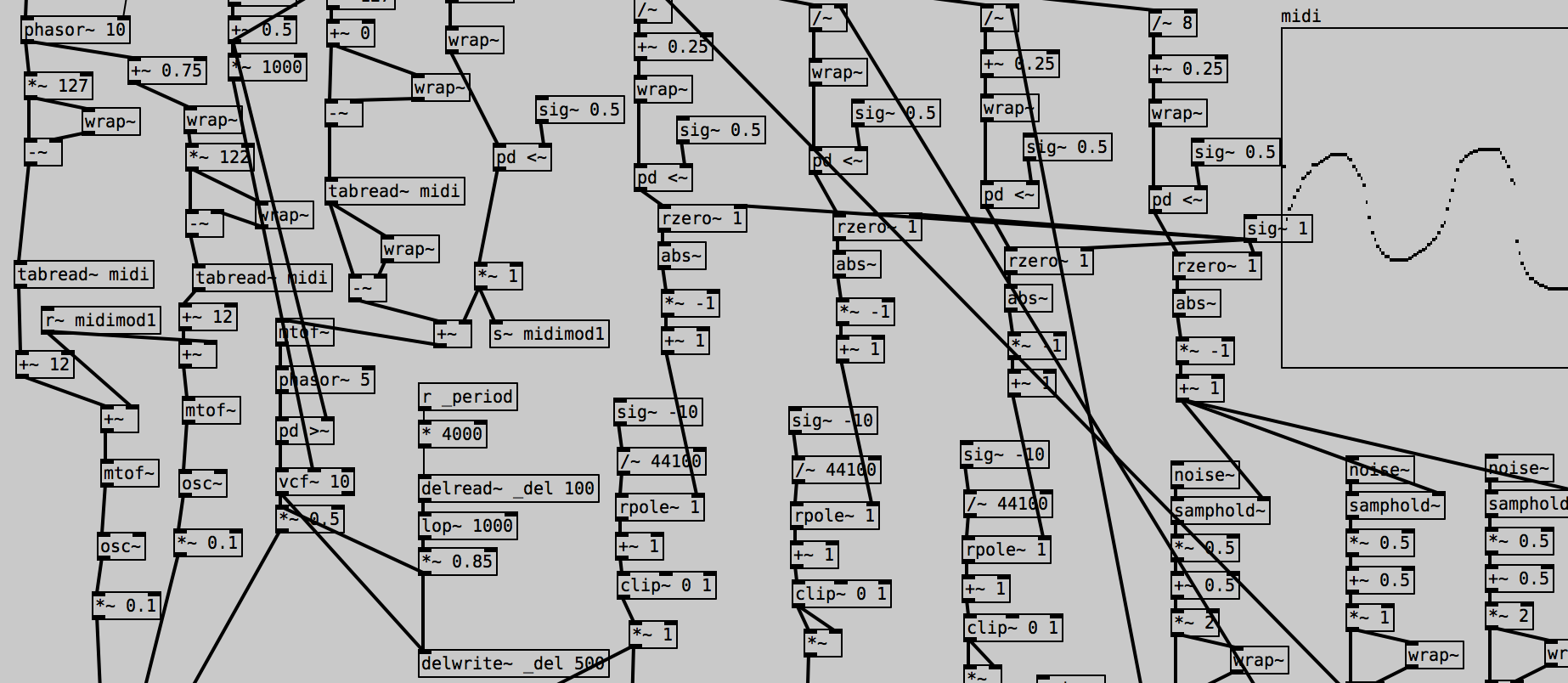

- Pure Data, Max, Modular synths, ...
- Modules + cables = graph
- ..to model signal flow
- Each module has inputs and outputs

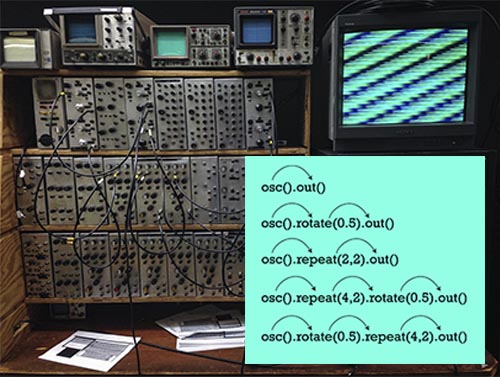

Method chaining:
saw(55).lpf(200).out()
Node data structure:
{
"type": "out",
"ins": [
{
"type": "lpf",
"ins": [
{
"type": "saw",
"ins": [55]
}
200
]
}
]
}
interface Node {
type: string;
ins: (Node | number)[]
}
interface Node {
type: string;
ins: (Node | number)[]
}
Functional composition:
out(lpf(saw(55), 200))
Imperative steps:
r[0] = saw(55)
r[1] = lpf(r[0], 200)
out(r[1])
- Left to right reading
- No nesting
- like Hydra / Strudel
- This is syntactic sugar for...
- Inside out
- Nesting
- Less readable
- These nested functions generate...
- This is like a syntax tree
- We can iterate over this
- We can do cool graph tricks
- We can optimize it
- We can compile this to...
- Machine friendly (low abstraction)
- Language agnostic
- Top to bottom
- Flat call structure
Chain:
return add(4, 2).mul(3).div(2).out()
Multichannel expansion™:
- SuperCollider-like
- poly-Node propagates through the graph
- Good for multichannel Audio
Feedback with lambdas:
Don't forget to step through it
3.for
We love repetition
4.audio
- Run ~48000 times per second
- Make sure result is between -1 and 1
DSP REPL:
- the $.dsp function runs for every sample = 48kHz
- $.l and $.r are the left and right speakers
Bytebeat example:
- only uses current time and math to make noise
- ackchually this is floatbeat
4.demos
5.visual
- Graphs are also useful for visuals
- Proof of concept: hydro
- Compiles Kabelsalat Node's to GLSL code
-
codeberg.org/froos/hydro
6.live coding
- How can we interact with the code?
- by text
- by in-source UI
- via MIDI
- What happens when we update the code?
- How do we maintain a sense of time
In-source UI
spawn:
- Global mutable variables via $
- Spawn to fade between 2 or more graphs
- -> No audible cracks
Maintain time:
- "??=" -> nullish coalescing assignment
- .. block based evaluation (TBD)
7.on the web

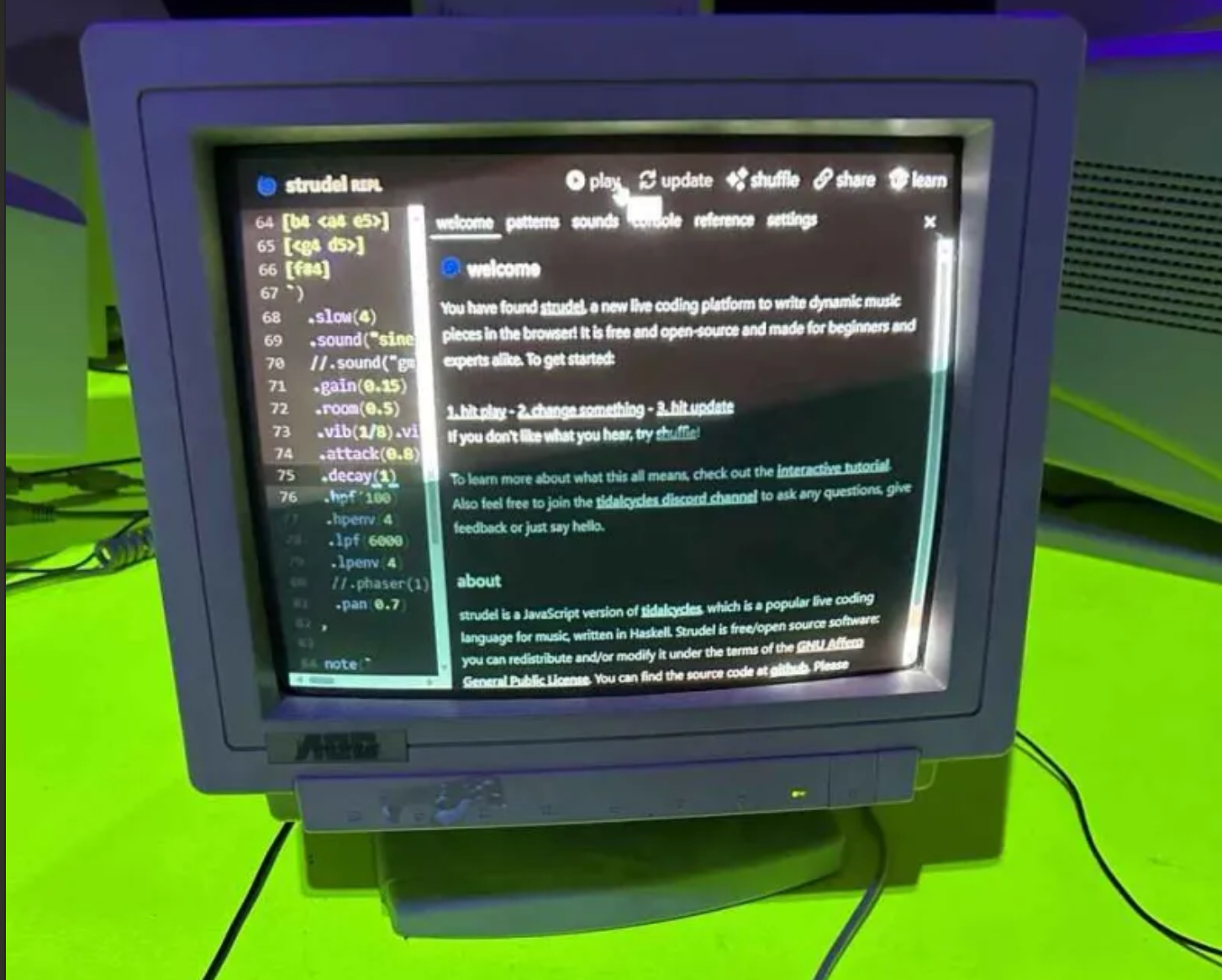

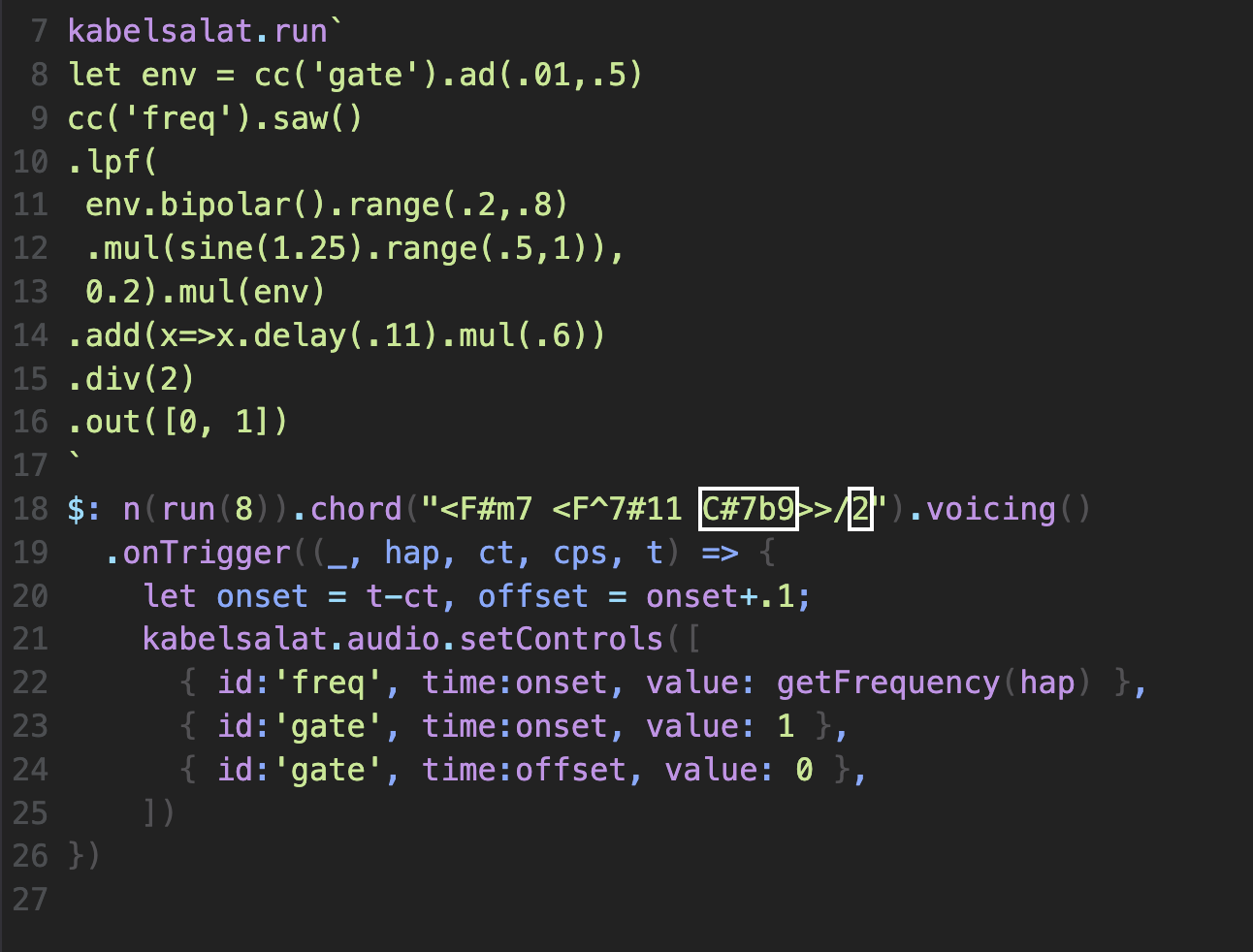

Kabelsalat -> Strudel
8.and beyond
- C compilation
- Mondo Kabelsalat
- WebAssembly Kabelsalat
- KabelSalat -> sclang
- What would you do with this?
youtube.com/watch?v=9zAx1kFr-yY
come jam on nudel.cc

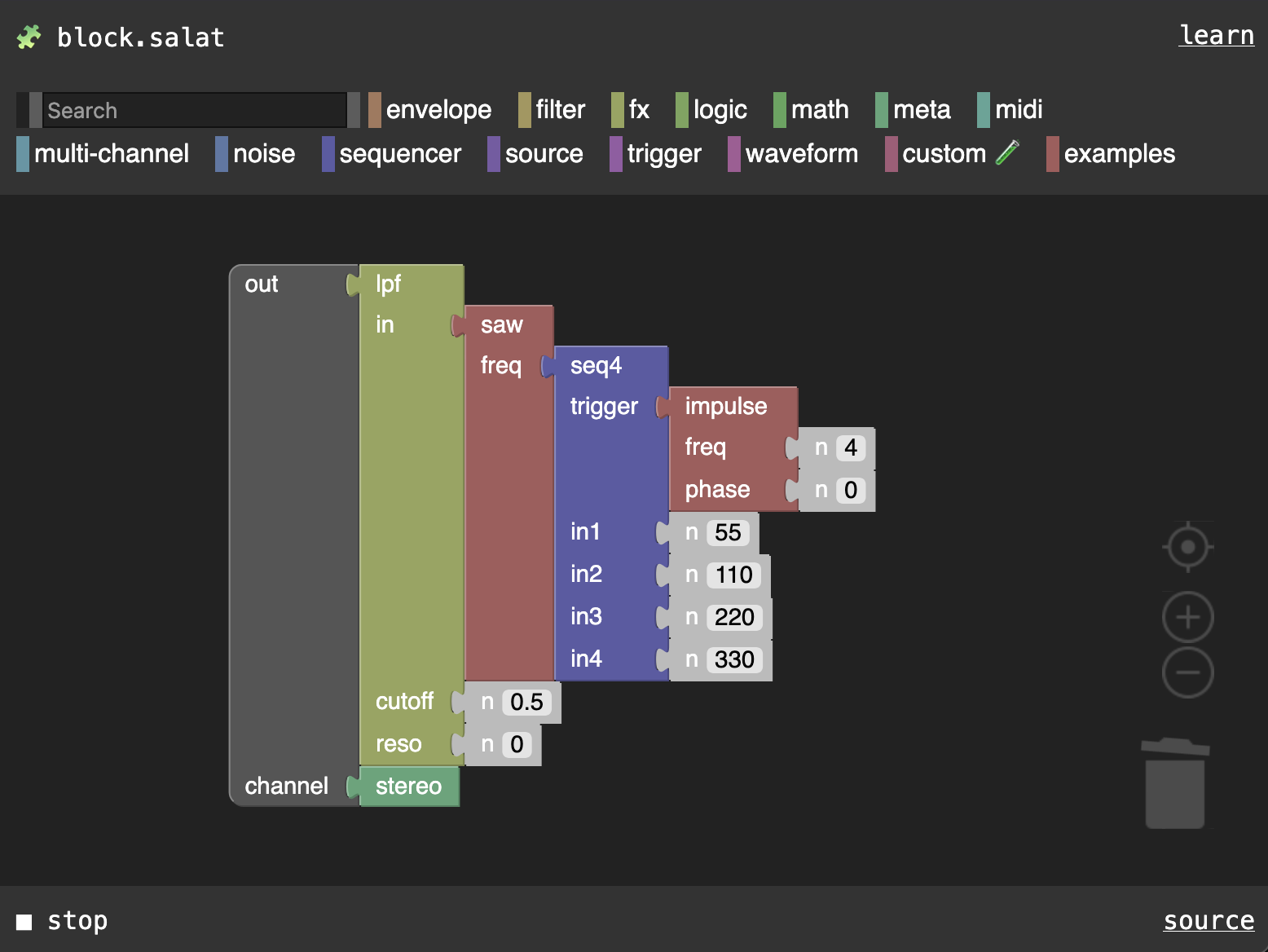

block.salat.dev

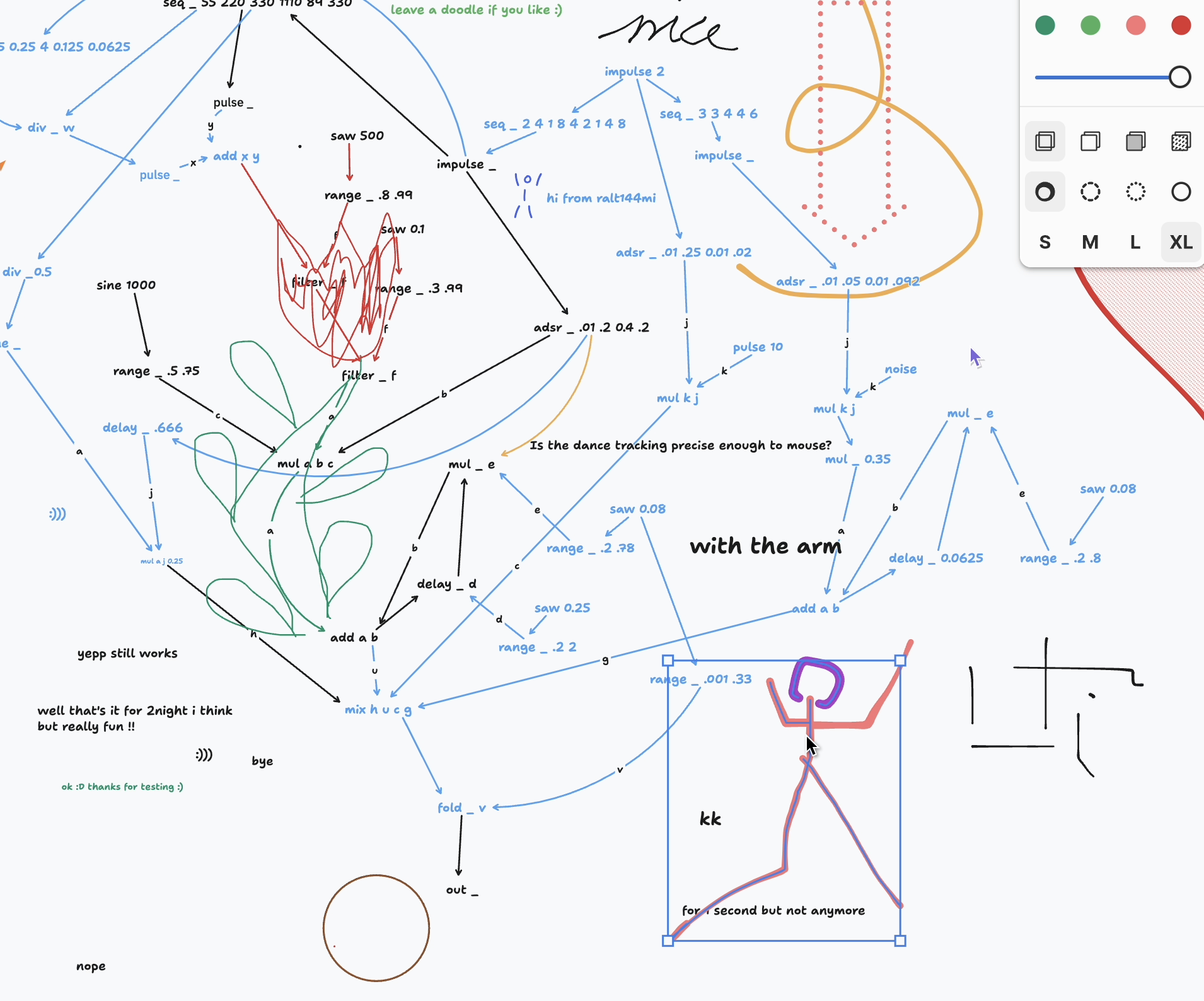

felixroos.github.io/tldaw (broken)
